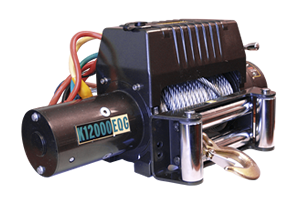

Quality Gear - Kodiak Grizzly 12000 Winch
The Kodiak Grizzly 12000 (K12000EQG) is largest electric winch available to Quality Gear. Any outdoor enthusiast needs this winch for their large / heavy duty off-road vehicle. It's has easy to use hand held remote with a 15 foot cable, a galvanized cable hook, colour coded power cables, a 100 foot winch line, and comes with the "Bear Essentials Kit".
The Kodiak Grizzly 12000 has a maximum Line Pull of 12,000lbs and is more then capable of getting your Heavy Duty Off-Road Rig or Truck out of the mud and back on the trail.
| Specifications | The Grizzly Comes With: | ||
| Rated Line Pull: | 12000lbs (5443kg) Max |
|
|
| Gear Train System: | Planetary Gear | ||
| Reduction Ratio: | 295.75:1 | ||
| Motor: | 4.8Hp (3.58kW) 12V | ||
| Cable: | 3/8” x 100’ (9.53mm x 30.48m) | ||
| Overall Dimensions: | 22.8” x 6.6” x 10” (579mm x 168mm x 254mm) |
||
| Bolt Pattern: | 10” x 4.5” (254mm x 114.3mm) | ||
| Shipping Weight: | 125lbs (56.7kg) |
Parts listed are not necessarily manufactured by the original equipment manufacturer and any reference to the trademarks or part numbers of others are for cross reference informational purposes only.
